Home Assistant – Electrisity Price Graph

I wanted to see my Power Consumption tougher with Electricity Price on a nice graphical representation.

For that I used Apxechard-Card: https://github.com/RomRider/apexcharts-card

The graph uses data from Tibber, Tibber Data and Nordpool intergrations.

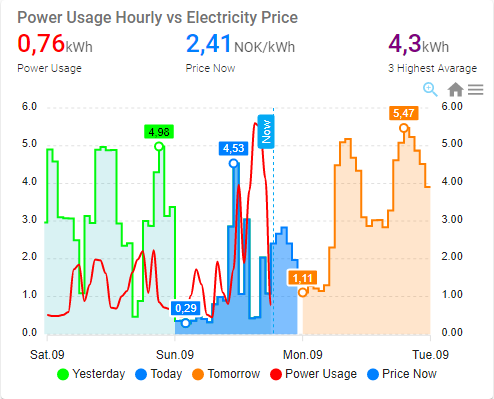

The result is as shown on the image and the code can be downloaded here:



type: custom:apexcharts-card
header:
  show: true
  title: Power Usage Hourly vs Electricity Price
  show_states: true
  colorize_states: true
now:
  show: true
  label: Now
graph_span: 72h
span:
  start: day
  offset: '-24h'
apex_config:
  xaxis:
    labels:
      format: dd.MM
  chart:
    zoom:
      enabled: true
    toolbar:
      show: true
      tools:
        zoom: true
        zoomin: false
        zoomout: false
        pan: false
        reset: true
  tooltip:
    fixed:
      enabled: true
      position: bottomLeft
yaxis:
  - id: first
    apex_config:
      min: 0
      opposite: true
      forceNiceScale: true
      decimalsInFloat: 2
      labels:
        show: true
  - id: second
    apex_config:
      opposite: false
      forceNiceScale: true
      decimalsInFloat: 1
      labels:
        show: true
all_series_config:
  stroke_width: 4
series:
  - entity: sensor.nordpool_kwh_oslo_nok_3_10_025
    yaxis_id: first
    name: Yesterday
    type: area
    curve: stepline
    float_precision: 2
    stroke_width: 2
    opacity: 0.05
    extend_to: false
    offset: '-1min'
    show:
      in_header: false
      legend_value: false
      in_chart: true
      extremas: true
      offset_in_name: false
    color: '#00FF00'
  - entity: sensor.nordpool_kwh_oslo_nok_3_10_025
    yaxis_id: first
    name: Today
    type: area
    curve: stepline
    float_precision: 2
    stroke_width: 2
    opacity: 0.5
    extend_to: false
    offset: '-1min'
    show:
      in_header: false
      legend_value: false
      extremas: true
      offset_in_name: false
    color: '#0080FF'
    data_generator: |
      return entity.attributes.raw_today.map((p) => {
        return [new Date(p.start), p.value];
      });
  - entity: sensor.nordpool_kwh_oslo_nok_3_10_025
    yaxis_id: first
    name: Tomorrow
    type: area
    curve: stepline
    float_precision: 2
    stroke_width: 2
    opacity: 0.2
    offset: '-1min'
    show:
      in_header: false
      legend_value: false
      extremas: true
      offset_in_name: false
    color: '#FF7F00'
    data_generator: |
      return entity.attributes.raw_tomorrow.map((p) => {
        return [new Date(p.start), p.value];
      });
  - entity: sensor.accumulated_consumption_current_hour
    yaxis_id: second
    name: Power Usage
    type: line
    float_precision: 2
    stroke_width: 2
    opacity: 1
    color: '#FF0000'
    extend_to: false
    show:
      in_header: true
      legend_value: false
    group_by:
      func: max
  - entity: sensor.nordpool_kwh_oslo_nok_3_10_025
    yaxis_id: first
    name: Price Now
    type: area
    curve: stepline
    float_precision: 2
    stroke_width: 0
    opacity: 0.1
    extend_to: false
    show:
      in_header: true
      legend_value: false
      in_chart: true
    color: '#0080FF'
  - entity: sensor.average_of_3_highest_hourly_consumption
    yaxis_id: second
    name: 3 Highest Avarage
    type: line
    float_precision: 2
    stroke_width: 2
    opacity: 1
    color: '#800080'
    extend_to: false
    show:
      in_header: true
      legend_value: false
      in_chart: false

Below is a Light Mode screenshot from my phone.
