Home Assistant – Power Information Chart

I wanted to display my Electricity Price, Power Usage Hourly, Power Usage Daily and Power Usage Now in a column chart.

All this because of new payment model i Norway where you pay according to Hourly Power Usage.

I decided to use custom:bar-card: https://github.com/custom-cards/bar-card

I downloaded some code from Home Assistant forum and Facebook group and added some tweaks of my own.

The code can be downloaded here:

stack: horizontal
type: custom:bar-card
title: Power Information
decimal: 2
direction: up
height: 150px
width: 24px
positions:
  indicator: inside
  icon: 'off'
style: |-
  .card-header {
    font-size: 18px;
  }
  bar-card-value, bar-card-name {
    transform-origin: 0 0;
    transform: rotate(270deg);
    white-space: nowrap;
  }
  bar-card-value {
    margin-right: auto;
    margin-left: 3px;
    margin-bottom: 0px;
    margin-top: auto;
    font-size: 12px;
  }
  bar-card-name {
    margin-right: auto;
    margin-left: 0px;
    margin-bottom: -130px;
    margin-top: 130px;
    right: 25px;
    font-size: 15px;
  }
  bar-card-currentbar, bar-card-backgroundbar {
    border-radius: 12px;
    border: 1px solid #DDD9;
  }
entities:
  - entity: sensor.nordpool_kwh_oslo_nok_3_10_025
    name: Electricity Price
    severity:
      - color: '#6CC923'
        from: '-1.5'
        to: '1'
      - color: '#BAD320'
        from: '1'
        to: '2'
      - color: '#F7DB22'
        from: '2'
        to: '3'
      - color: '#FFB020'
        from: '3'
        to: '4'
      - color: '#FF6421'
        from: '4'
        to: '5'
      - color: '#F20B03'
        from: '5'
        to: '6'
      - color: '#D30500'
        from: '6'
        to: '8'
    max: 8
    min: -1.5
  - entity: sensor.accumulated_consumption_current_hour_house_of_valhalla
    name: Power Usage Hourly
    severity:
      - color: '#6CC923'
        from: '0'
        to: '2'
      - color: '#BAD320'
        from: '2'
        to: '3'
      - color: '#F7DB22'
        from: '3'
        to: '5'
      - color: '#FFB020'
        from: '5'
        to: '7'
      - color: '#FF6421'
        from: '7'
        to: '9.5'
      - color: '#F20B03'
        from: '9.5'
        to: '12'
      - color: '#D30500'
        from: '12'
        to: '15'
    max: 15
    min: 0
  - entity: sensor.power_house_of_valhalla
    name: Power Usage Now
    severity:
      - color: '#6CC923'
        from: '0'
        to: '1500'
      - color: '#BAD320'
        from: '1500'
        to: '2500'
      - color: '#F7DB22'
        from: '2500'
        to: '3500'
      - color: '#FFB020'
        from: '3500'
        to: '5000'
      - color: '#FF6421'
        from: '5000'
        to: '7500'
      - color: '#F20B03'
        from: '7500'
        to: '9500'
      - color: '#D30500'
        from: '9500'
        to: '12500'
    max: 12500
    min: 0
  - entity: sensor.accumulated_consumption_house_of_valhalla
    name: Power Usage Daily
    severity:
      - color: '#6CC923'
        from: '0'
        to: '20'
      - color: '#BAD320'
        from: '20'
        to: '30'
      - color: '#F7DB22'
        from: '30'
        to: '50'
      - color: '#FFB020'
        from: '50'
        to: '70'
      - color: '#FF6421'
        from: '70'
        to: '95'
      - color: '#F20B03'
        from: '95'
        to: '100'
      - color: '#D30500'
        from: '10'
        to: '125'
    max: 125
    min: 0

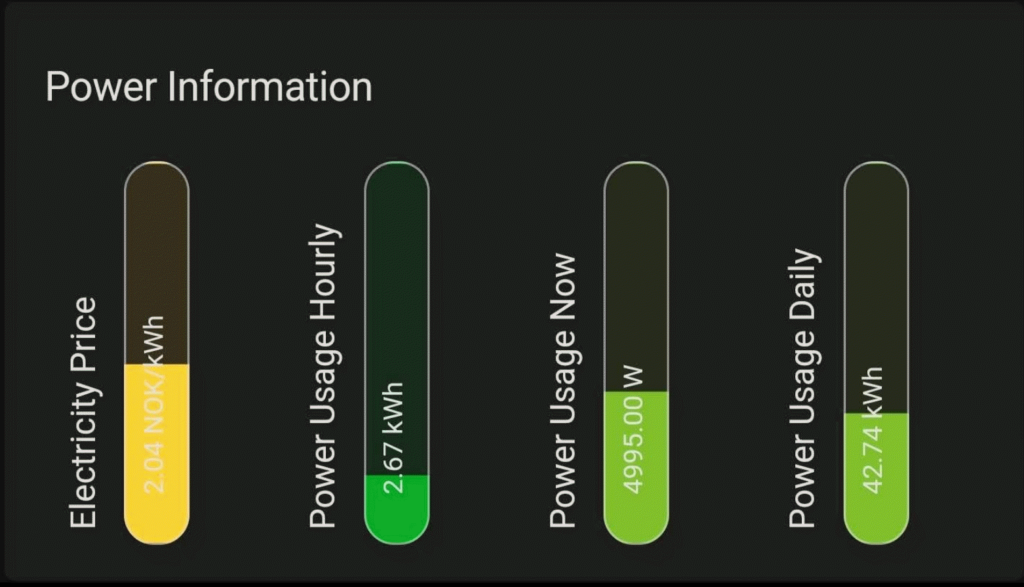

Below is a Light Mode screenshot from my phone.



I added also a simple automation that warns me when Power Usage Hourly passes 8.5kWh

All this to achieve maximum hourly consumption below 10kWh, due to new payment model to Norwegian grid companies.

I will also add some automations that temporary turn off devices and slows down my EV’s charging speed.

More  about that is coming soo.

alias: Energy Consumption Per Hour Warning
description: ''
trigger:
  - platform: numeric_state
    entity_id: sensor.accumulated_consumption_current_hour
    above: '8.5'
condition: []
action:
  - service: notify.notify
    data:
      data:
        ttl: 0
        priority: high
      title: Energy Consumption Alert!
      message: Your Energy Consumption Passed 8.5 kWh / hour.
mode: single
